Produced for ship production and maintenance hangars. Very large single-piece doors, unaffected by water or excessive moisture, with all structural parts made of galvanised steel.
Shipyard doors are produced for ship production and maintenance hangars — shipyard hangars. They are doors produced as a single piece in very large sizes, designed specifically for shipyards.
We design, manufacture, install and service shipyard doors in accordance with regional durability calculations, and they can be specially designed according to the needs of each customer.
Unlimited in width — shipyard doors are produced in the width you want thanks to the folding side guide. Doors can be produced in solid 50 × 50 m dimensions.
Thanks to a high usage performance compatible with all kinds of industrial environments:
Shipyard doors are suitable for all weather conditions. Coastal humidity, salt air and washdown do not degrade the system.
All structural parts are made of galvanised steel, which is the reason the door survives a marine environment.
The door takes up the least space in the assembly area and gives you the opportunity to use the passage to the maximum.
Shipyards need very large and very high transition areas; the system delivers them without splitting the opening.
The equipment of the fold-up PVC fabric shipyard door is the rope break safety system, two motors, two rope drums and one control unit.
Holds the leaf if a rope fails. On a 50 m door this is the component that separates an inconvenience from an accident.
Balanced drive across the full width of the opening.
Symmetrical load on both sides so the leaf lifts level.
Single point of operation for the facility team.
Production times of fold-up PVC fabric shipyard doors are 45–50 days. Depending on the intensity of the factory this period can be up to 60 to 90 days.
Since shipyard doors are special projects, their prices vary according to each project and no fixed price can be given.

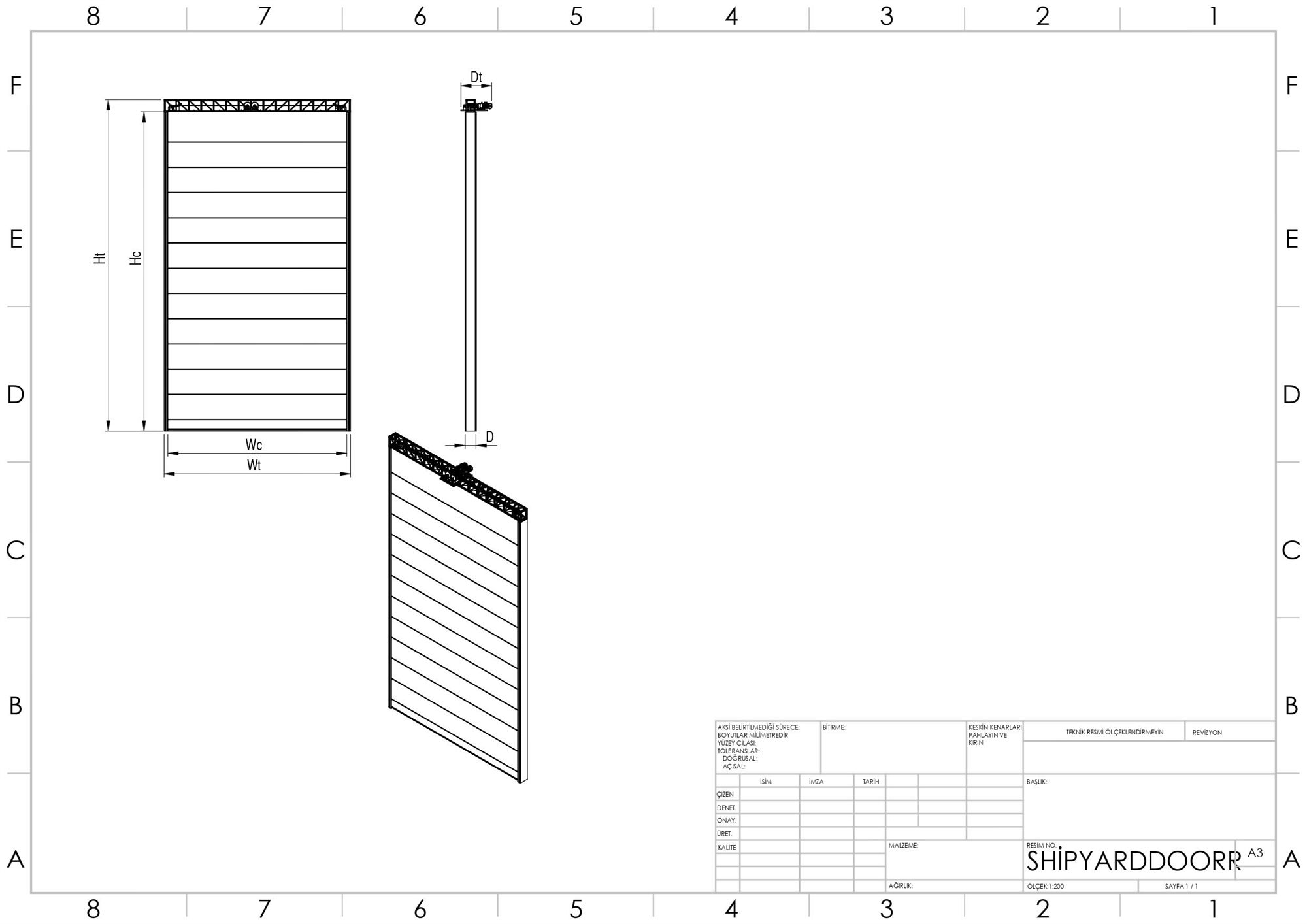

General arrangement and dimensions. A project-specific drawing is issued for approval with every quotation. Click to enlarge.

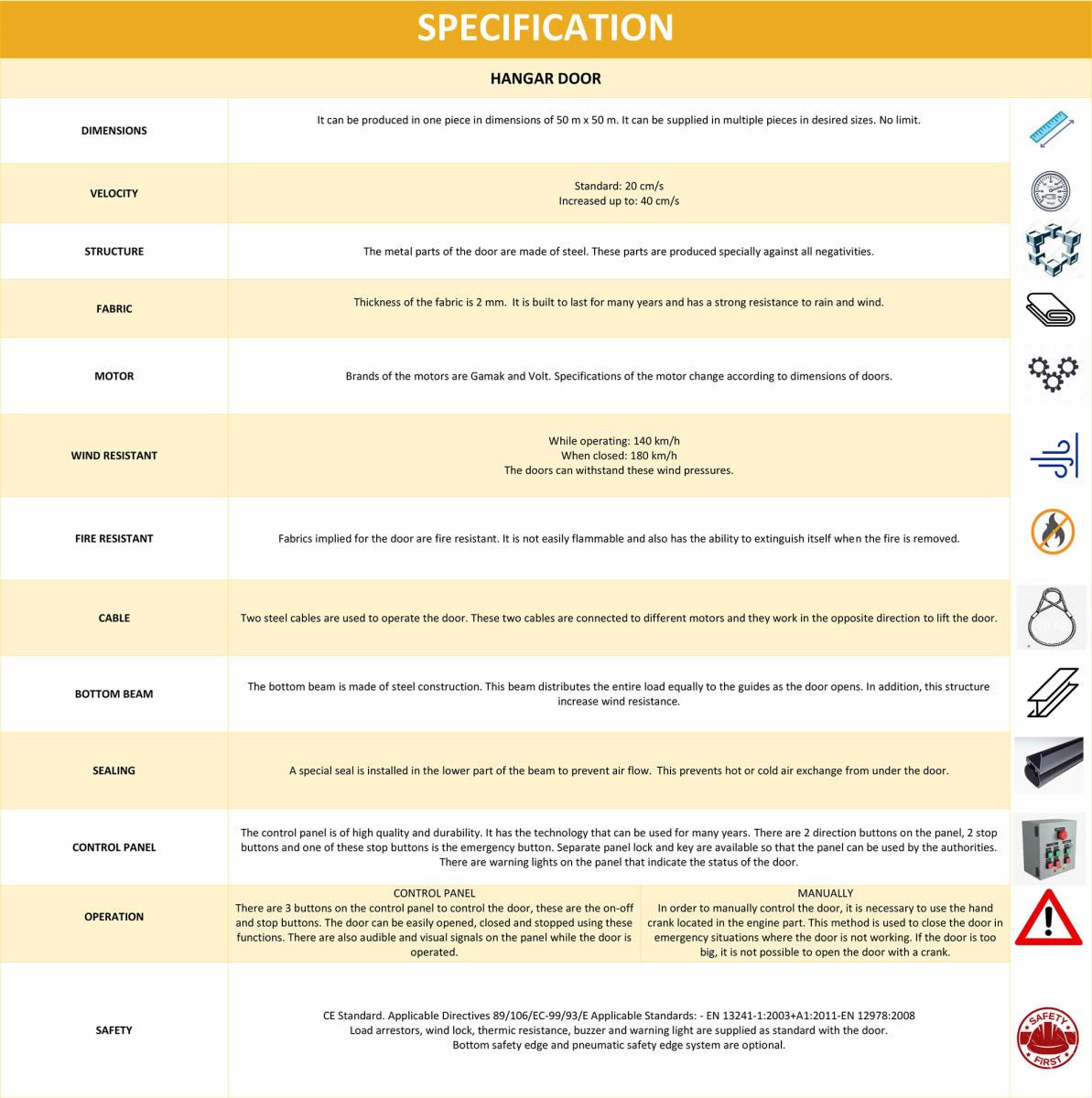

Materials, drive configuration and safety equipment. Click to enlarge.

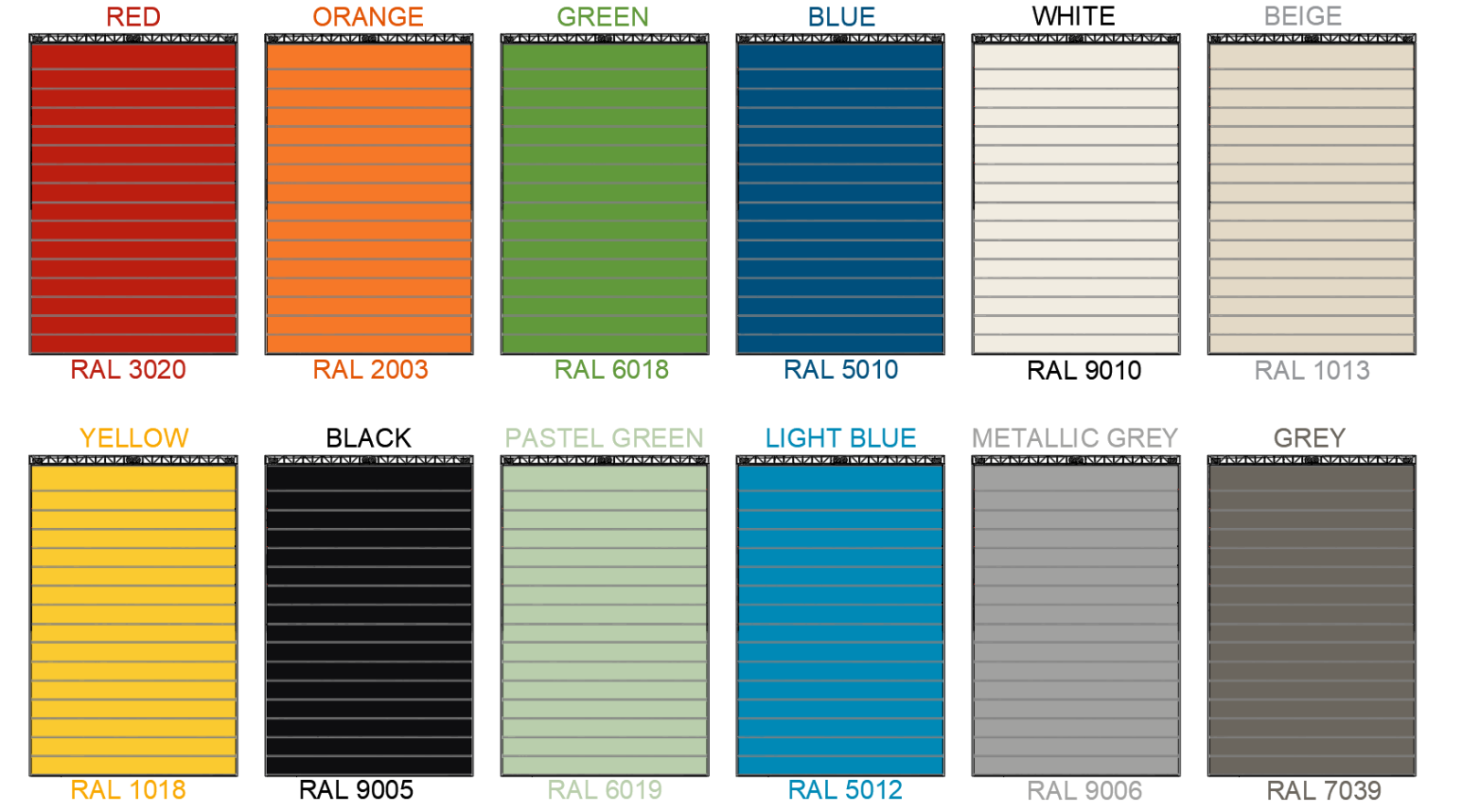

Standard fabric and profile colours. Other colours can be produced on request. Click to enlarge.
The questions we are asked most often before a project starts.
The equipment of the fold-up PVC fabric shipyard door is the rope break safety system, two motors, two rope drums and one control unit.
Production times of fold-up PVC fabric shipyard doors are 45–50 days. Depending on the intensity of the factory this period can be up to 60 to 90 days.
Since shipyard doors are special projects, their prices vary according to each project and no fixed price can be given.
Yes. We have completed projects in more than 25 countries including Iraq, Macedonia, Bangladesh, Algeria and Norway, with installation carried out by our own teams.
Clear width, clear height, building structure and location. Four items are enough for a first technical response and a project-based quotation.
