Also called double-layer canvas doors, preferred in windy areas. Applied in sizes up to 8 × 8 m, maintenance-free, with high wind resistance thanks to the intermediate carcasses between the two layers.
The mini hangar door, also called a double-layer canvas door, is preferred in windy areas. Double-layer PVC fabric doors can be applied in large sizes such as 8 × 8 m and provide comfort with different colour options.
Because the door is double-layered, wind resistance is high thanks to the intermediate carcasses inside. The second defining feature is that these are maintenance-free doors — you will not pay extra for periodic servicing.
Double-layer fabric doors are also very common in large barn facilities, where the combination of a wide opening and constant wind exposure is the same problem in a different building.
Double-layer PVC fabric doors are used wherever a clear opening is needed in a compact or wind-exposed building:
The intermediate carcasses between the layers are what give the door its wind resistance. A single-layer door of the same size behaves very differently in a gust.
The system is designed to run for years without a service contract, which is the main reason facilities choose it over mechanical alternatives.
Different colour options are available so the door can match the building rather than fight it.
A single door is produced in about 10 days, extending to 20 days when the factory is busy.
The equipment of double-layer PVC fabric doors is a geared motor, rope drums increasing in number according to the size, four limit switches, a control unit, a rope breakage safety system, the main frame and the canvas.
Drives the door at a controlled speed appropriate to the leaf mass.
The number of drums increases with the door size so the load stays symmetrical.
End positions are controlled mechanically, not by timing alone.
The leaf is held if a rope fails.
Production of a double-layer PVC fabric door is 10 days. According to the intensity of the production area this period can be extended up to 20 days.
Doors are produced to project dimensions, so pricing is given against your opening data rather than from a list.

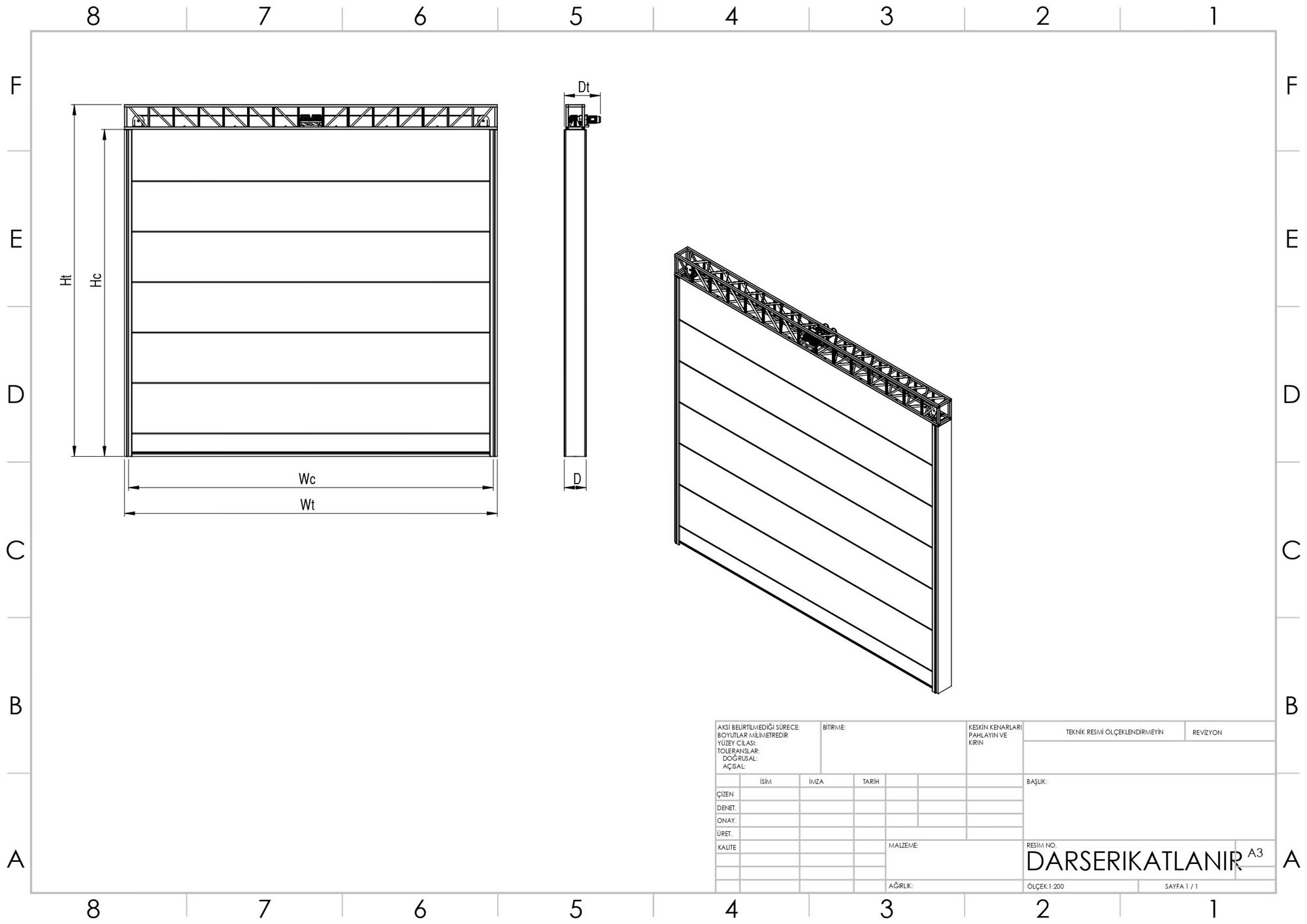

General arrangement and dimensions. A project-specific drawing is issued for approval with every quotation. Click to enlarge.
Materials, drive configuration and safety equipment. Click to enlarge.
The questions we are asked most often before a project starts.
The equipment of double-layer PVC fabric doors is a geared motor, rope drums increasing in number according to the size, four limit switches, a control unit, a rope breakage safety system, the main frame and the canvas.
Production of a double-layer PVC fabric door is 10 days. According to the intensity of the production area this period can be extended up to 20 days.
Doors are produced to project dimensions, so pricing is given against your opening data rather than from a list.
Yes. We have completed projects in more than 25 countries including Iraq, Macedonia, Bangladesh, Algeria and Norway, with installation carried out by our own teams.
Clear width, clear height, building structure and location. Four items are enough for a first technical response and a project-based quotation.
