Applied to garages and cold storages. Fast enough to let a queue of vehicles through quickly, while the insulated leaf reduces dust, air circulation and energy loss.
High speed PVC insulated spiral fabric doors are applied to garages. As the name suggests they are fast, allowing the vehicles on site to enter quickly, and they reduce dust, air circulation and energy loss.
They control entry and exit via a fully automatic system. When equipped with a metal-sensing sensor, opening is triggered by the approaching vehicle itself.
The insulation is the point of difference: in a cold store, a fast door that does not insulate simply moves the energy loss from the doorway to the leaf.
Common areas of use include:
Thermal protection is combined with speed, which is what makes the door suitable for a cold store rather than only a factory aisle.
The door stops and reverses if an object is detected during automatic closing.
High-speed operation with endurance for continuous use, with no daily operating limit.

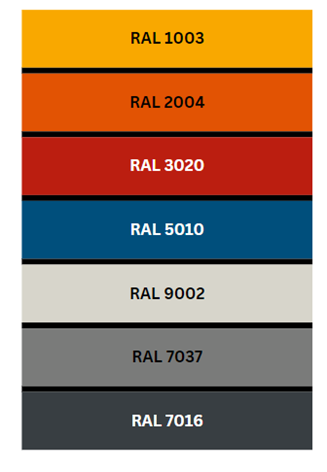

Visually appealing colour options, with automatic modules for timed closure.
The standard equipment of high speed PVC insulated rolling shutter doors is the canvas, motor, control card, side guides and upper mechanism.
The leaf carries the thermal performance as well as the speed.
Drive and logic including timed closure and sensor inputs.
Maintain the seal that the insulation depends on.
Coils the leaf in a spiral above the opening, taking minimal space.
The production of one high speed PVC insulated spiral fabric door is approximately 10 days. This period varies with the intensity of the project.
As these doors are custom-built, pricing varies based on dimensions, project requirements and optional features. Fixed pricing is not applicable.

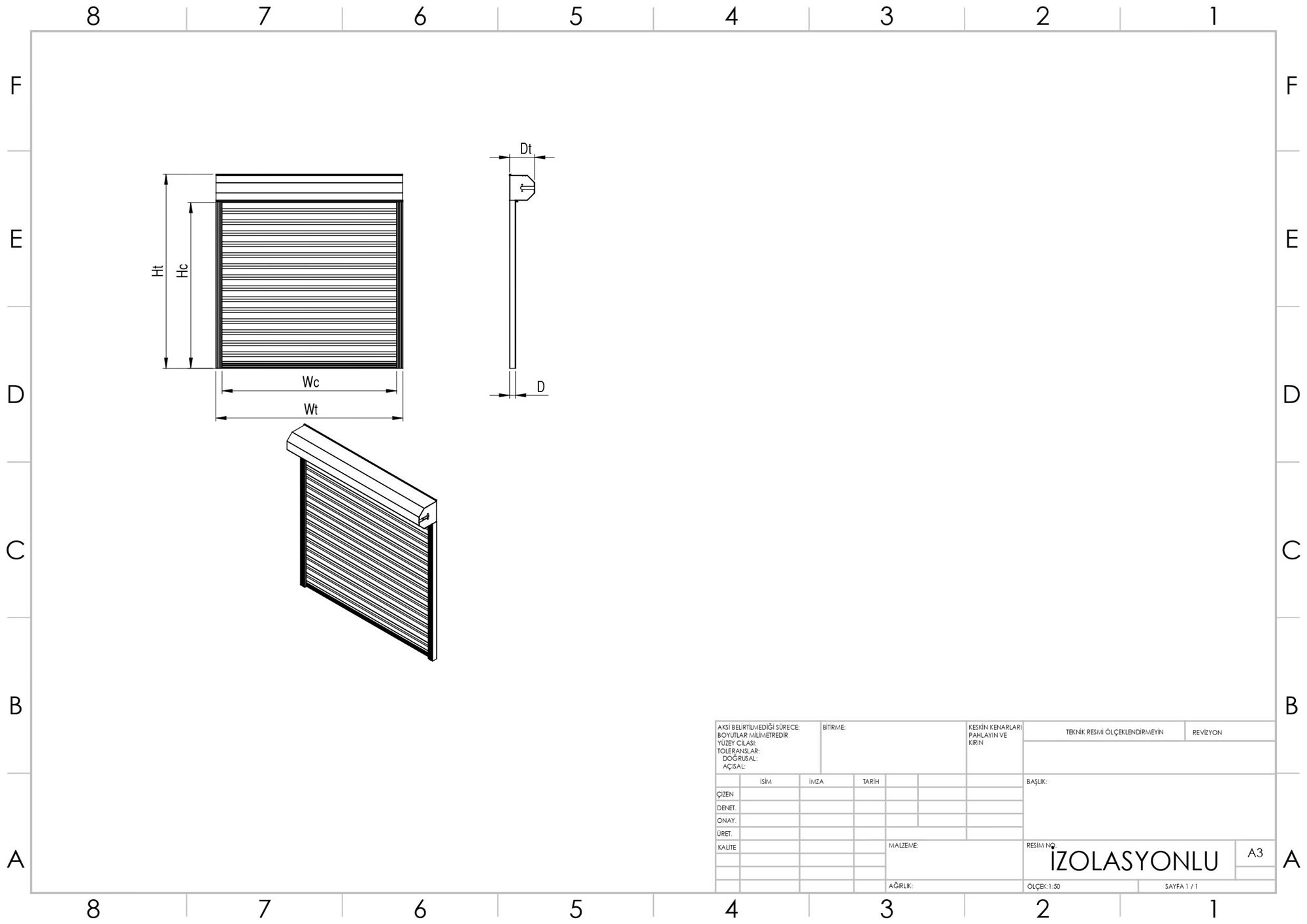

General arrangement and dimensions. A project-specific drawing is issued for approval with every quotation. Click to enlarge.

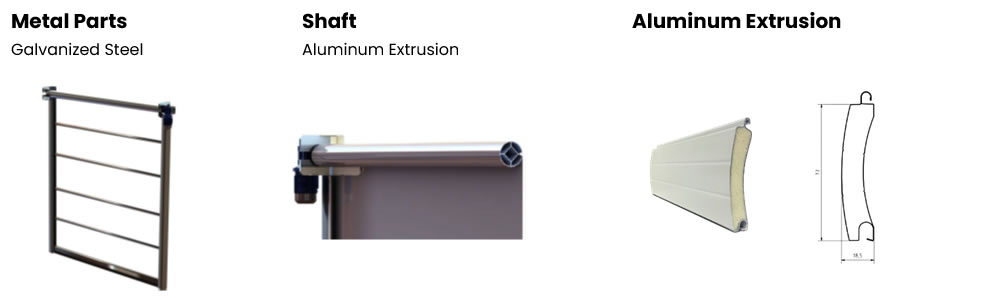

Materials, drive configuration and safety equipment. Click to enlarge.
The questions we are asked most often before a project starts.
The standard equipment of high speed PVC insulated rolling shutter doors is the canvas, motor, control card, side guides and upper mechanism.
The production of one high speed PVC insulated spiral fabric door is approximately 10 days. This period varies with the intensity of the project.
As these doors are custom-built, pricing varies based on dimensions, project requirements and optional features. Fixed pricing is not applicable.
Yes. We have completed projects in more than 25 countries including Iraq, Macedonia, Bangladesh, Algeria and Norway, with installation carried out by our own teams.
Clear width, clear height, building structure and location. Four items are enough for a first technical response and a project-based quotation.
