These doors accelerate traffic in the field and at the same time reduce dust, air circulation and energy loss. Fully automatic operation, optional metal-sensing sensors and sight windows.
High-speed PVC fabric folding doors, as the name suggests, accelerate the traffic of customers in the field and at the same time reduce dust, air circulation and energy loss.
These doors control the entrance and exit of vehicles and construction machines with a fully automatic module. By optionally adding a metal-sensing sensor, automatic opening and closing can be triggered by the vehicle itself.
Sight windows can be added to the door. Vehicles approaching then have a chance to observe the other side before entering, which reduces work accidents.
The usage areas are generally factories, applied to forklift roads in the inner areas. They are also applied on exteriors where no security issue exists:
The biggest feature is speed and unlimited working during the day. The door does not need a rest cycle.
After opening, the door closes automatically after a set number of seconds.
If any object passes under the door during closing, it stops and rises automatically.
Control panels, LOOP metal mass detectors, card access systems, motion detection radar and many other automatic opening options.
The standard equipment of high speed PVC fabric folding doors is the tarpaulin, motor, control card, side guides and upper mechanism.
The PVC fabric leaf itself, available in various colour options.
Drive and logic; the card carries the automatic close timing and sensor inputs.
Keep the leaf tracking correctly at high cycle speed.
Folds and stores the leaf above the opening.
The production of one high speed PVC fabric folding door is approximately 10 days. This period varies with the intensity of the project.
These doors are produced to special dimensions, so the price varies according to the size and project. Standard pricing cannot be given due to special production, location differences and multiple options.

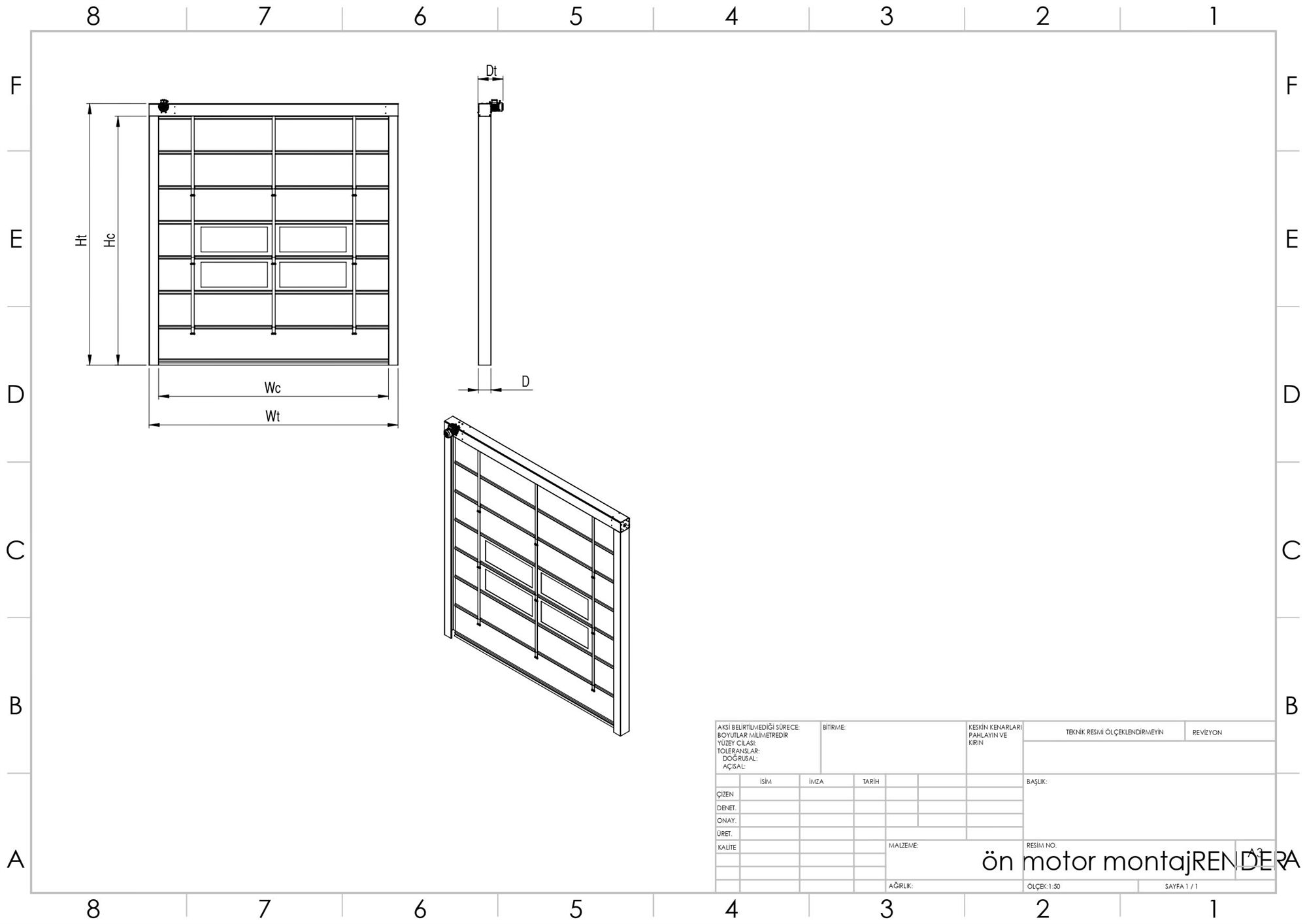

General arrangement and dimensions. A project-specific drawing is issued for approval with every quotation. Click to enlarge.
Materials, drive configuration and safety equipment. Click to enlarge.

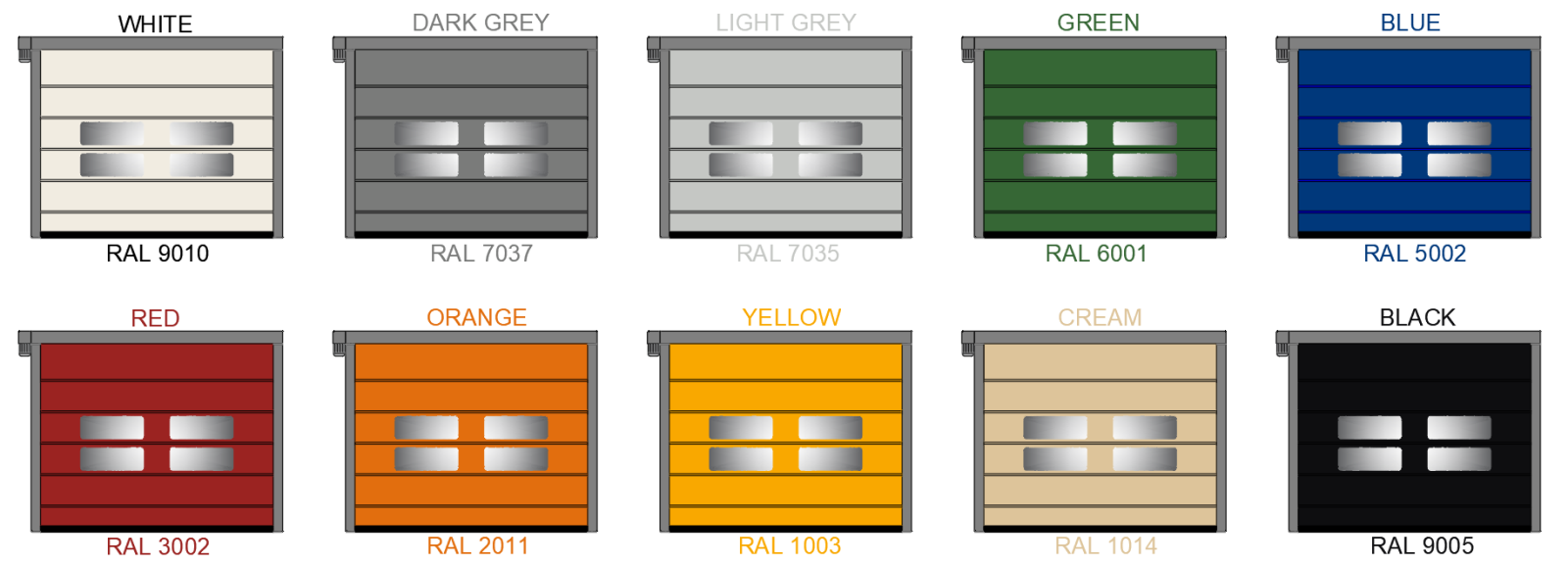

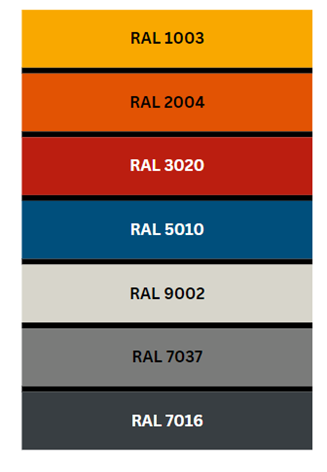

Standard fabric and profile colours. Other colours can be produced on request. Click to enlarge.
The questions we are asked most often before a project starts.
The standard equipment of high speed PVC fabric folding doors is the tarpaulin, motor, control card, side guides and upper mechanism.
The production of one high speed PVC fabric folding door is approximately 10 days. This period varies with the intensity of the project.
These doors are produced to special dimensions, so the price varies according to the size and project. Standard pricing cannot be given due to special production, location differences and multiple options.
Yes. We have completed projects in more than 25 countries including Iraq, Macedonia, Bangladesh, Algeria and Norway, with installation carried out by our own teams.
Clear width, clear height, building structure and location. Four items are enough for a first technical response and a project-based quotation.
