Designed for military airport hangars, aircraft hangars and shipyards. Doors with no limits in size are applied to every space, projected, drawn and priced according to the width and height you need.
LID doors are designed for military airport hangar doors, aircraft hangars and shipyards. Doors with no limits in size are applied to every space. Each door is projected, drawn and priced according to the width and height you need.
The motorized aircraft hangar door can be produced as a single piece or designed as multi-piece. Military aircraft hangar doors are used especially in very large transition areas, aircraft hangars, production facilities and recycling facilities. Large fold-up PVC fabric mega hangar doors are ready for all security systems, and transparent windows can be produced in the desired colour.
Thanks to its unique design the door is highly resistant to wind. Panels can be used individually or all at the same time, which gives flexibility in use and allows production in unlimited sizes.
There is no limit to the width for aircraft PVC fabric folding doors. They can be designed with folding guides according to any desired size.
Special designs are prepared in accordance with the needs of each customer and produced according to regional durability calculations.
The most distinctive feature of the system is that it takes up the least space in the assembly area and lets you use the door passage to the maximum.
Sections can be operated individually or simultaneously, which is what makes unlimited sizing possible.
Large fold-up mega hangar doors are prepared for all security systems; transparent windows can be added in the chosen colour.
The equipment of the fold-up PVC fabric aircraft hangar door is the rope break safety system, two motors, two rope drums and one control unit.
If a rope fails the system holds the leaf instead of letting it fall.
Drive is shared across two motors so the leaf stays balanced through the full travel.
Load is carried symmetrically on both sides of the opening.
A single unit runs the door and coordinates both motors.
Production times of fold-up PVC fabric aircraft hangar doors are 45–50 days. Depending on the intensity of the factory this period can be up to 60 to 90 days.
Since these are special projects, prices vary according to each project and no fixed price can be given. Send your opening dimensions for a project-based quotation.

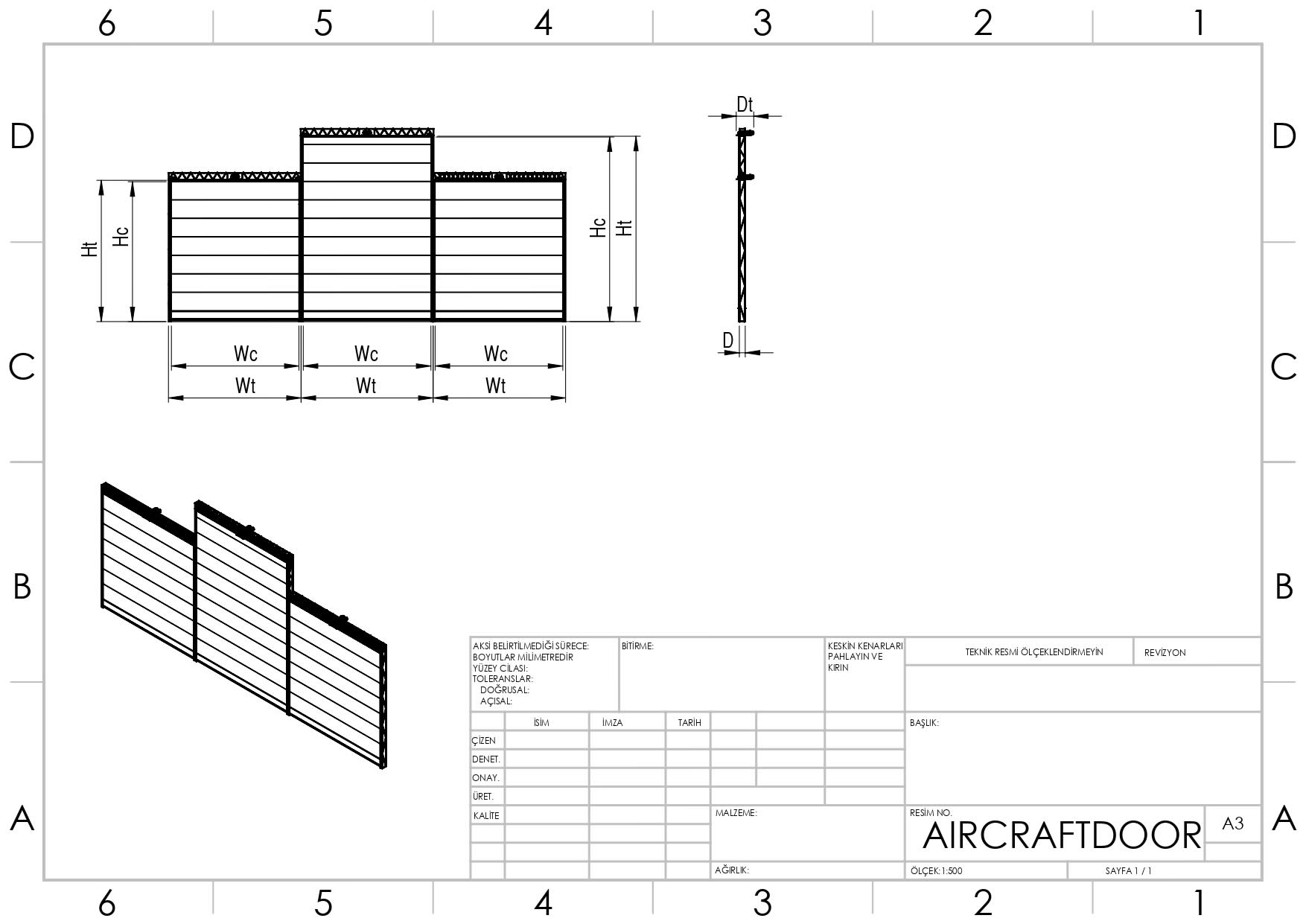

General arrangement and dimensions. A project-specific drawing is issued for approval with every quotation. Click to enlarge.
Materials, drive configuration and safety equipment. Click to enlarge.

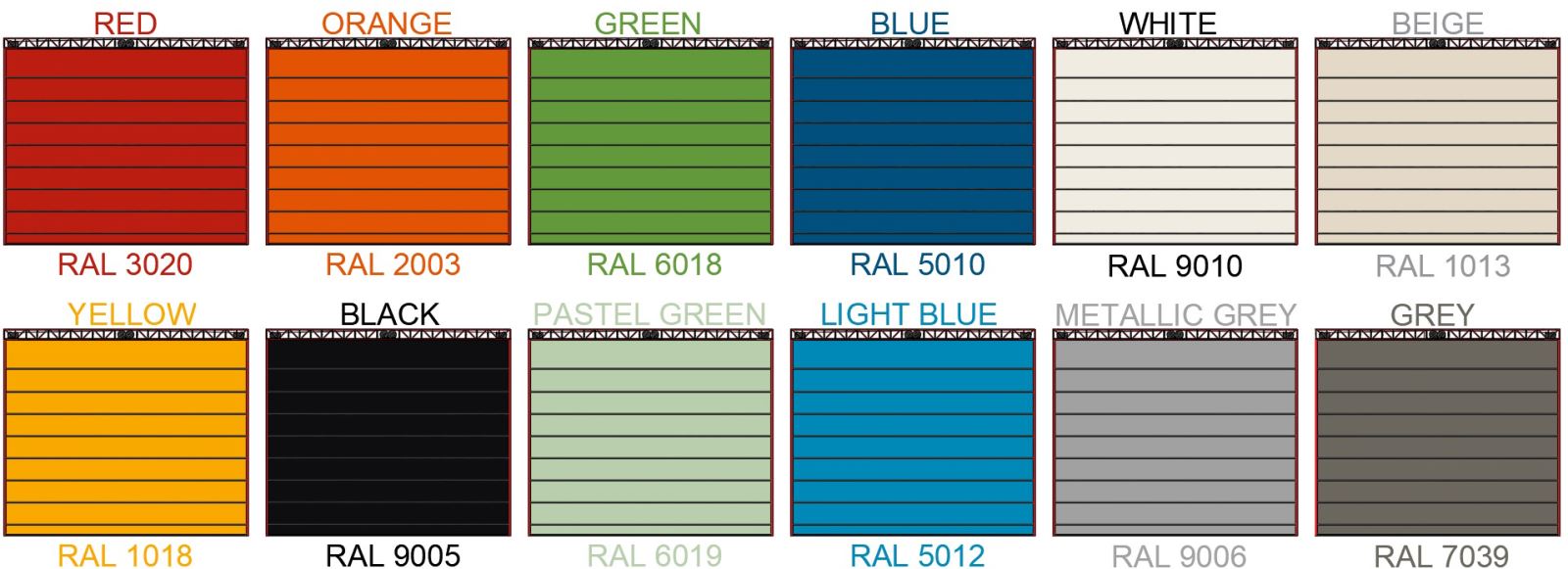

Standard fabric and profile colours. Other colours can be produced on request. Click to enlarge.
The questions we are asked most often before a project starts.
The equipment of the fold-up PVC fabric aircraft hangar door is the rope break safety system, two motors, two rope drums and one control unit.
Production times of fold-up PVC fabric aircraft hangar doors are 45–50 days. Depending on the intensity of the factory this period can be up to 60 to 90 days.
Since these are special projects, prices vary according to each project and no fixed price can be given. Send your opening dimensions for a project-based quotation.
Yes. We have completed projects in more than 25 countries including Iraq, Macedonia, Bangladesh, Algeria and Norway, with installation carried out by our own teams.
Clear width, clear height, building structure and location. Four items are enough for a first technical response and a project-based quotation.
